350V montagem lenta da placa do fusível do sopro de 1 ampère com o estilo do cartucho do furo
Detalhes do produto:
| Certificação: | UL CUL VDE PSE KC CQC |
| Número do modelo: | TMS1100A |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 1000Pcs |
|---|---|
| Preço: | 0.016~0.025 USD/Pieces |
| Detalhes da embalagem: | Fita, 20K/Carton, 58*36*23cm, 6kg/carton |
| Tempo de entrega: | 5-7 dias úteis |
| Termos de pagamento: | T/T |
| Habilidade da fonte: | 1000000000pcs/month |
|
Informação detalhada |
|||
| Nome: | Micro fusível 1A 350V | Velocidade: | Retarde o sopro |
|---|---|---|---|
| Corrente avaliado: | 1A | Tensão: | 350V |
| pacote: | FITA | Tamanho: | 8x4x8mm |
| Realçar: | Placa lenta do fusível do sopro de 1 ampère,fusível lento do sopro 350V,Montagem lenta da placa do fusível do sopro |
||
Descrição de produto

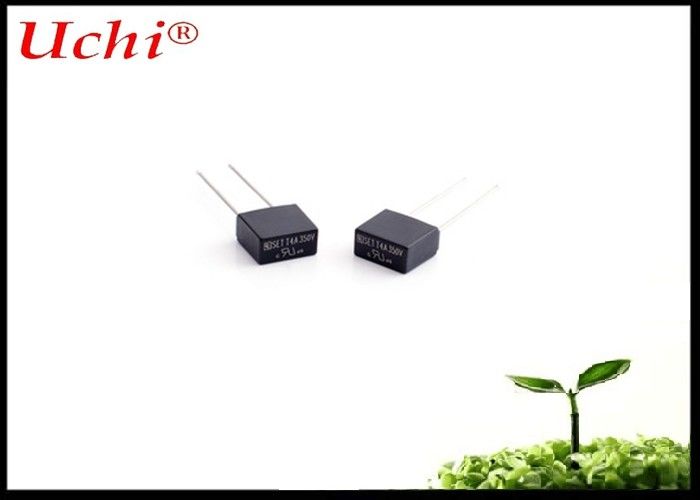

Board Mount Through Hole Cartridge Style Excluded Radial Box Slow Blow Micro Fuse T 1A 350VAC 100VDC Cut Tape
TMS UL, Slow-Blow, Radial, 350 VAC Fuse
TMS series slow-blow, high-amp, radial-lead micro fuse
UCHI Fuse introduces the TMS series slow-blow, radial-leaded micro fuse with enhanced operating voltage range of 350 VAC and up to 100 VDC, and fuse ampere ratings up to 20 A. The tms series is certified to UL 248-14. These enhanced features allow the use of this fuse for board level primary and secondary circuit protection in a broad range of products, such as battery chargers, power supplies, monitors, routers, consumer electronics, and more. Additionally, the UL voltage rating of 350 VAC to 100 VDC, provides for protection of ballasts, LED drivers, and other lighting appliances.
Features
High l2t, high amp ratings to 20 A
Time lag (350 VAC, 72 VDC)
Meet UL 248-14
Wide operating temperature range
Bulk and tape-and-reel packing available
RoHS 6-compliant
Halogen-free
Lead-free
Application
Provide individual protection for components or internal circuits such as Power supplies
Battery chargers
Consumer electronics
Adapters
Industrial controllers
Agency Approvals
| Agency | Ampere Range | Agency File Number |
| UR | 50mA ~ 6.3A | E340427(JDYX2) |
| C-UR | 50mA ~ 6.3A | E340427(JDYX8) |
| VDE | 50mA ~ 6.3A | 40039420 |
| CQC | 50mA ~ 6.3A | CQC16012154495 |
| PSE | 50mA ~ 6.3A | PSE16021073 |
| KC | 50mA ~ 6.3A | SU05052-16004/16005/16006 |
Specification
| NO. | Part Name | Material |
| 1 | Cap | Black or Brown Thermoplastic Polyamide PA 6.6, UL 94 V-0 |
| 2 | Base | Black or Brown Thermoplastic Polyamide PA 6.6, UL 94 V-0 |
| 3 | Fuse element | Alloy |
| 4 | Lead wire | Copper, Tin-plated |
| Catalog | Ampere | Voltage | Max Voltage | I2TMelting |
| No. | Rating | Rating | Drop (mv) | Integral(A2.S) |
| TMS0050A | 50mA | 350V | 555 | 0.02 |
| TMS0100A | 100mA | 350V | 355 | 0.11 |
| TMS0125A | 125mA | 350V | 323 | 0.12 |
| TMS0160A | 160mA | 350V | 296 | 0.17 |
| TMS0200A | 200mA | 350V | 272 | 0.21 |
| TMS0250A | 250mA | 350V | 251 | 0.41 |
| TMS0315A | 315mA | 350V | 237 | 0.63 |
| TMS0400A | 400mA | 350V | 211 | 1.22 |
| TMS0500A | 500mA | 350V | 202 | 2.34 |
| TMS0630A | 630mA | 350V | 191 | 2.88 |
| TMS0800A | 800mA | 350V | 172 | 3.92 |
| TMS1100A | 1A | 350V | 200 | 5.77 |
| TMS1125A | 1.25A | 350V | 200 | 8.34 |
| TMS1160A | 1.6A | 350V | 190 | 13.6 |
| TMS1200A | 2A | 350V | 170 | 25.9 |
| TMS1250A | 2.5A | 350V | 170 | 42 |
| TMS1300A | 3A | 350V | 165 | 45 |
| TMS1315A | 3.15A | 350V | 150 | 64 |
| TMS1400A | 4A | 350V | 130 | 92 |
| TMS1500A | 5A | 350V | 130 | 140 |
| TMS1630A | 6.3A | 350V | 130 | 208 |
| TMS1800A | 8A | 350V | 100 | 265 |
| TMS2100A | 10A | 350V | 100 | 295 |
| TMS2120A | 12A | 350V | 98 | 295 |
| TMS2150A | 15A | 350V | 95 | 299 |
| % of Ampere Rating(In) | Blowing Time |
| 150%* In | 60 min Minimum |
| 210%* In | 30 min Max |
| 275%* In | 10 ms~3 s |
| 400%* In | 3 ms~300 ms |
| 1000%* In | 20 ms Max |
