BLDC 75100 Brushless Motors For Home Application And Business Equipment
Detalhes do produto:
| Lugar de origem: | Dongguan China |
| Marca: | UCHI |
| Certificação: | Completed |
| Número do modelo: | BLDC 75100 |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 1000pcs |
|---|---|
| Preço: | Negociável |
| Detalhes da embalagem: | Padrão |
| Tempo de entrega: | 5-7 dias |
| Termos de pagamento: | T/T, Western Union |
| Habilidade da fonte: | 5000 peças |
|
Informação detalhada |
|||
| Nenhuma tensão da carga: | 220.4V | Velocidade em eff max: | 1489rpm |
|---|---|---|---|
| Certificado: | 3c | Pout máx: | 398.9W |
| Torça máximo: | 2.607mn.m | ||
| Destacar: | Business Equipment BLDC Brushless Motors,75100 BLDC Brushless Motors |
||
Descrição de produto
BLDC 75100 Brushless Motors For Home Application And Business Equipment
Typical Applications:
1. Home Application
2. Business Equipment

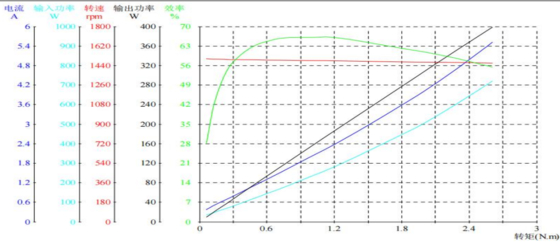

Brushless Motor Technical Data
| Point | VOLTAGE | CURRENT | INPUT POWER | SPEED | TORQUE | OUTPUT POWER | EFFICIENCY | POWER FACTOR | FREQUENCY | TIME |
| V | A | W | RPM | mN.m | W | % | Hz | S | ||
| NO LOAD | 220.4 | 0.377 | 34.89 | 1502 | 0.064 | 10.06 | 28.8 | 0.42 | 50.02 | 0 |
| EFF MAX | 200.2 | 1.589 | 178 | 1489 | 0.763 | 118.8 | 66.8 | 0.509 | 50.01 | 19.11 |
| POUT MAX | 219.8 | 5.511 | 720.4 | 1462 | 2.607 | 398.9 | 55.4 | 0.595 | 50.02 | 31.78 |
| TORQUE MAX | 219.8 | 5.511 | 720.4 | 1462 | 2.607 | 398.9 | 55.4 | 0.595 | 50.02 | 31.78 |
| END | 219.8 | 5.511 | 720.4 | 1462 | 2.607 | 398.9 | 55.4 | 0.595 | 50.02 | 31.78 |
Features:
- High Efficiency: BLDC motors are highly efficient because they eliminate the mechanical energy loss due to friction in brushed motors. This efficiency is particularly advantageous in battery-powered applications where energy conservation is crucial.
- Long Lifespan: The absence of brushes means there is no brush and commutator erosion, which significantly extends the motor's lifespan. The lifespan is usually limited only by the bearings.
- High Power-to-Weight Ratio: BLDC motors can deliver high power relative to their size and weight. This makes them ideal for applications where weight and space are critical, such as in model aircraft and drones.
