WH3012P 30mm 45mm Stereo Dual Sliding Potentiometer B10K Travel Sliding Potentiometer
Detalhes do produto:
| Lugar de origem: | Dongguan ， Guangdong, China |
| Marca: | Uchi |
| Certificação: | SMC |
| Número do modelo: | WH3012P |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 100pcs |
|---|---|
| Preço: | Negociável |
| Termos de pagamento: | T/T, paypal, Western Union, MoneyGram |
| Habilidade da fonte: | 50000000pcs por mês |
|
Informação detalhada |
|||
| Resistência total: | 10KΩ±20% | Resistência Taper: | A, B, C, D, E, MN, RD, W, |
|---|---|---|---|
| Máximo Operação Tensão: | Cone linear B: CA 200 V ~ CC / V | Potência nominal: | Unidade única: cone linear B:0,2W, outros cones: 0,05W Unidade dupla: cone linear B:0,1W, outros con |
| Ruído de deslizamento: | Menos de 100 mV | Resistência ao isolamento: | Mais de 100 MΩ em 250 V CC |
| Suportar tensão: | 1 minuto em CA 300 V | Resistência residual: | Prazo. 1~2: Menos de 10Ω |
| Erro de grupo (unidade dupla): | -40 dB ~ 0 dB ± 3dB | ||
| Destacar: | 30mm stereo sliding potentiometer B10K,45mm dual sliding potentiometer with warranty,travel sliding potentiometer for precision control |
||
Descrição de produto

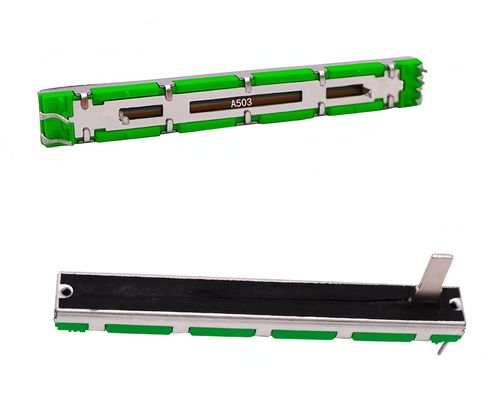

The WH3012P is a high-precision stereo dual sliding potentiometer featuring a 60mm travel range. This sliding resistor uses a resistance wire wound around insulation material with a sliding film contact point to regulate circuit resistance. Ideal for amplifiers, filters, and other electronic devices requiring precise resistance adjustment.
- Total length: 75mm (7.5cm)
- Width: 9mm (0.9cm)
- Thickness: 6.5mm (0.65cm)
- Handle height: 15mm (1.5cm), width: 4mm (0.4cm)
- Stroke length: 60mm (6cm)
- Pin configuration: 4-2 pins
- Resistance: A10K
- Channel: Dual channel
- Precision adjustment with smooth sliding operation
- High accuracy for sensitive electronic circuits
- Simple yet durable construction
- Wide resistance adjustment range
- Versatile applications in amplifiers, filters, and oscillators
| Parameter | Value |
|---|---|
| Total Resistance | 10K Ω±20% |
| Resistance Taper | A, B, C, D, E, MN, RD, W |
| Max. Operation Voltage | Linear Taper B: AC 200V~DC/V Other Tapers: AC 150V~DC/V |
| Rated Power | Single unit: Linear taper B: 0.2W, Other tapers: 0.05W Dual unit: Linear taper B: 0.1W, Other tapers: 0.025W |
| Sliding Noise | Less than 100mV |
| Insulation Resistance | More than 100MΩ at DC 250V |
| Withstand Voltage | 1 minute at AC 300V |
| Residual Resistance | Term. 1~2: Less than 10Ω Term. 2~3: Less than 10Ω |
| Gang Error (Dual Unit) | -40dB ~ 0dB ± 3dB |
| Parameter | Value |
|---|---|
| Total Sliding Travel | 60.0mm ± 0.5mm |
| Operating Force | 10~100gf |
| Sliding Stopper Strength | 5.0Kgf.cm Min. |
| Push-Pull Strength | 3.0Kgf.cm Min. at 5-10 sec |
| Number of Detents (Click) | 1C (Center Detent), 7C, 11C, 21C, 41C |
| Resistance to Soldering Heat | Solder dip: Preheating to 100℃ in 1 min, 260±5℃ for 5 sec Manual Soldering: Less than 300℃ for under 3 sec |
| Sliding Life | 10,000 cycles (Min.) |
This linear slide potentiometer is widely used in audio equipment, mechanical control systems, and instrumentation. Its reliable performance and straightforward design make it a preferred choice for electronic engineers and manufacturers.
We are a specialized factory with extensive experience in high-quality electronic component manufacturing:
- Advanced production equipment
- Professional R&D team
- OEM/ODM capabilities
- Strict quality control standards
We offer reliable global shipping solutions with comprehensive after-sales support:
- Express Mail Service
- DHL Express
- UPS
- FedEx
We are a factory offering direct pricing with professional technical support.
Samples are available upon request after order placement.
We accept OEM/ODM orders with flexible requirements.
Delivery varies by quantity and model, with urgent requests accommodated when possible.
We provide comprehensive 24-hour support for all products.
