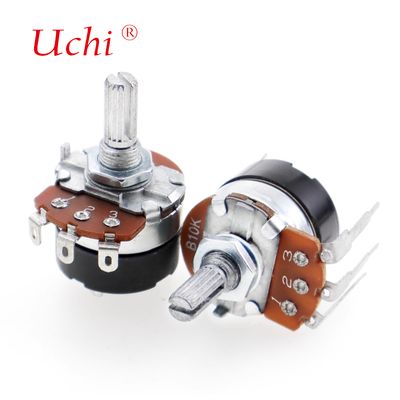

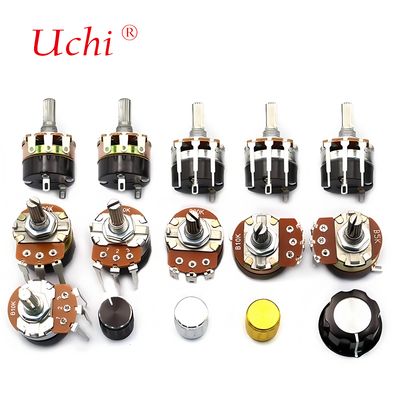

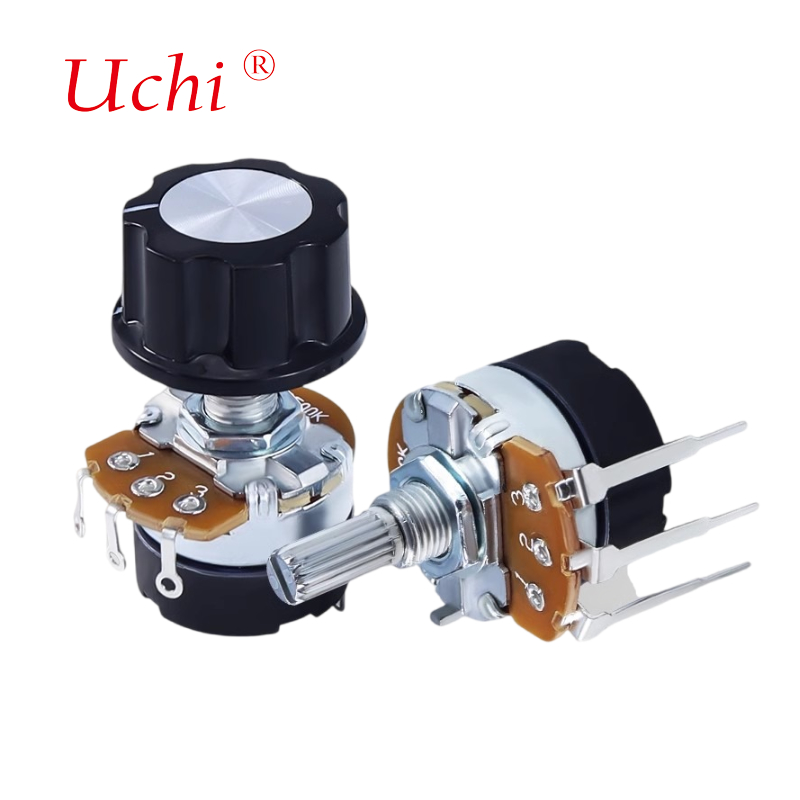

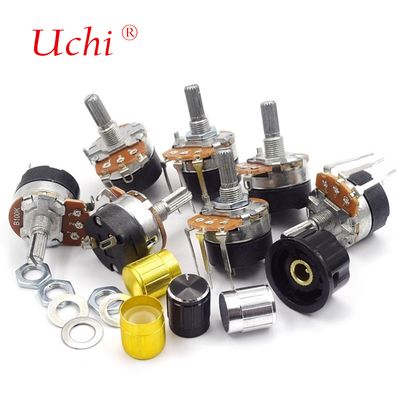

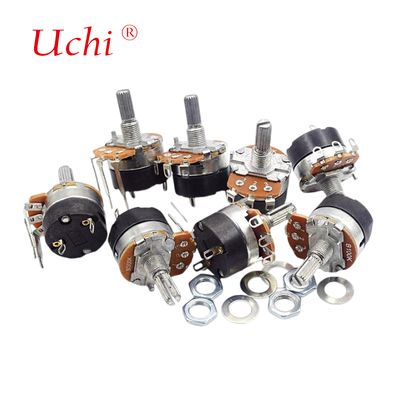

WH138 Resistance Speed Regulator 24mm Carbon Film Rotary Potentiometer
Detalhes do produto:
| Lugar de origem: | Dongguan ， Guangdong, China |
| Marca: | Uchi |
| Certificação: | SMC |
| Número do modelo: | WH138 |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 100pcs |
|---|---|
| Preço: | Negociável |
| Termos de pagamento: | T/T, paypal, Western Union, MoneyGram |
| Habilidade da fonte: | 50000000pcs por mês |
|
Informação detalhada |
|||
| Resistência: | 1KΩ~2MΩ | Faixa de temperatura: | Curva B:0,5W Outra curva B:0,25W |
|---|---|---|---|
| Tensão máxima de operação: | Curva B:500V Outra curva B:250V | Lei da resistência: | A, B, C |
| Ângulo rotatório total: | 300 ° ± 5 ° | Tolerância à resistência: | ± 20 (%) |
| Características: | Potenciômetro de filme de carbono | Permitir tolerância à desistência: | ±20%(1MΩ ou mais30%) |
| Torque rotacional: | 2~20 mN.m(20~200gf.cm) | Vida giratória: | 10.000 Ciclos |
| Destacar: | 24mm carbon film potentiometer,rotary speed regulator potentiometer,WH138 resistance speed controller |
||
Descrição de produto
WH138 Resistance Speed Regulator 24mm Carbon Film Rotary Potentiometer
High-quality carbon film rotary potentiometer designed for precise speed regulation in various electronic applications.
Electrical Characteristics
| Parameter | Specification |
|---|---|
| Temperature Range | -10℃~70℃ |
| Rated Power | Curve B: 0.5W Other curve B: 0.25W |
| Max Operation Voltage | Curve B: 500V Other curve B: 250V |
| Resistance Range | 1KΩ~2MΩ |
| Allowable Resistance Tolerance | ±20% (1MΩ or more 30%) |
| Rotational Noise | ≤47mV |
| Terminal Resistance | R≥250KΩ: 0.1%R max 250KΩ>R>10KΩ: 20Ω max 10KΩ≥R: 10Ω max |
| Resistance Law | A, B, C |
| Dielectric | AC500V, 1 minute |
| Insulation Resistance | More than 100MΩ at DC500V |
Mechanical Characteristics
| Parameter | Specification |
|---|---|
| Rotational Torque | 2~20 mN.m (20～200gf.cm) |
| Total Rotational Angle | 300°±5° |
| Rotary Life | 10,000 cycles |
| Shaft Stopper Strength | 6Kgf.cm |
| Soldering | Temperature T≤265℃: time ts5s |
Product Dimensions
