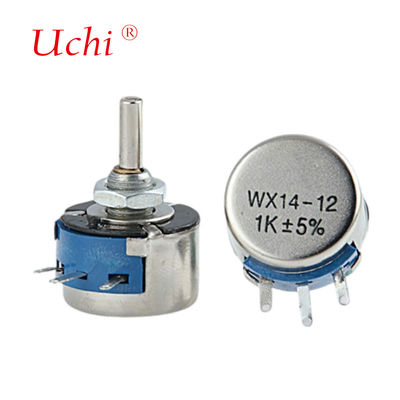

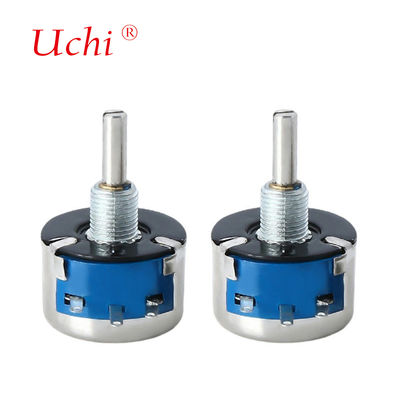

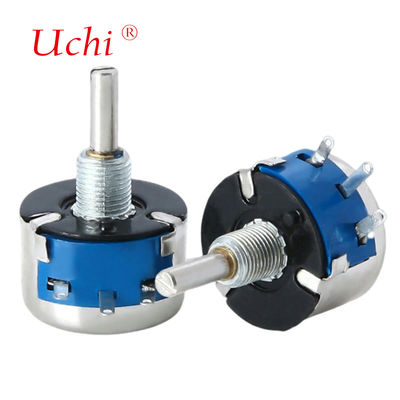

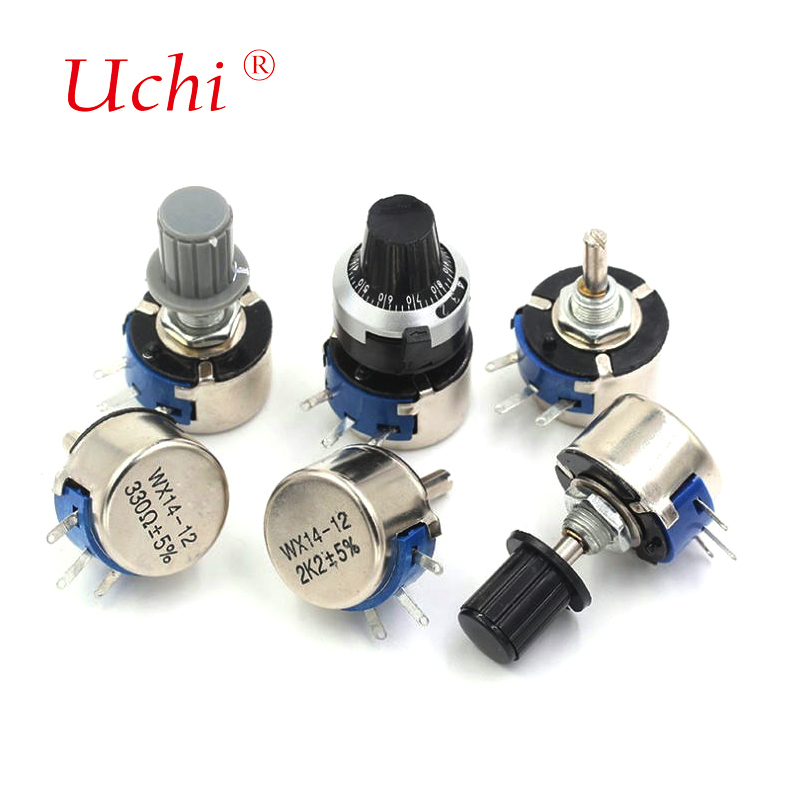

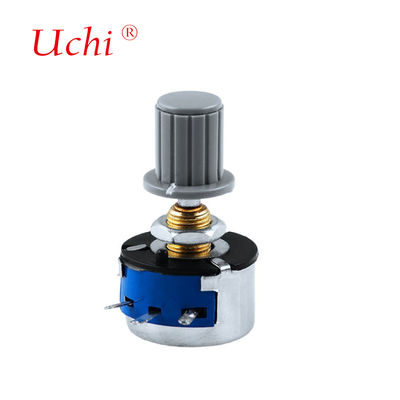

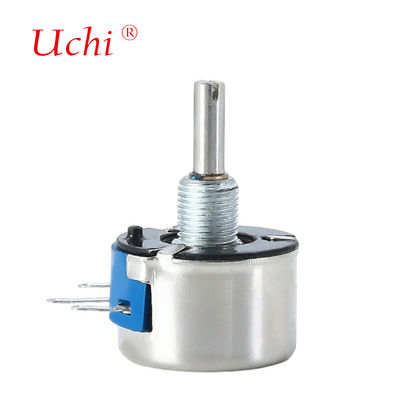

WX14-12 3w Single-turn Wire-wound Rv12mm Rotary Potentiometer
Detalhes do produto:
| Lugar de origem: | Dongguan ， Guangdong, China |
| Marca: | Uchi |
| Certificação: | SMC |
| Número do modelo: | WX14-12 |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 100pcs |
|---|---|
| Preço: | Negociável |
| Termos de pagamento: | T/T, paypal, Western Union, MoneyGram |
| Habilidade da fonte: | 50000000pcs por mês |
|
Informação detalhada |
|||
| Potência nominal: | 3w | Resistência: | 1Ω~22KΩ |
|---|---|---|---|
| Tolerância à resistência: | ±5%, ±10% | Tamanho / dimensão: | 24*35mm |
| Diâmetro do eixo: | 6mm | Número de voltas: | 1 volta |
| Ciclos de vida útil de rotação (sem carga): | 10.000 | ângulo de rotação: | 300° |
| Destacar: | 3W wire-wound potentiometer,RV12mm rotary potentiometer,single-turn precision potentiometer |
||
Descrição de produto
WX14-12 3W Single-turn Wire-wound RV12mm Rotary Potentiometer
The WX14-12 single-circle wire winding power unit features a power rating of 3W, axis diameter of 4mm, outer circular diameter of 24mm, and open hole of 8.3mm. With an accuracy of ±5% and knob angle of 300°, this potentiometer offers multiple resistance options from 27Ω to 20K.
Specification Parameters
| Product Name | Single turn wirewound potentiometer |
|---|---|
| Model | WX14-12 |
| Resistance | ±5%,±10% |
| Package Diameter | 24mm |
| Shape | Round |
| Number of Turns | 1 turn |
| Sealable | IP40 |
| Shaft | Nickel plated rail |
| Element | Wirewound |
| Terminal | Solder lug |
| Taper-Linear | X |
| Linearity | ±5%~±10% |
| Resistance-Minimum | 1Ω |
| Resistance-Maximum | 22k |
| Tolerance Resistance | ±5%/±10% |
| Power-Rating | 3W |
| Angle of Rotation | 300° |
| Rotational Life (No Load) Cycles | 10000 |
| Shaft Diameter | 4mm |
| Shaft Length | 20mm |
| Panel Diameter | 23mm |
Product Features
- Silver contact copper parts enhance frequency response and conductor performance
- Durable thick iron shell material provides high mechanical strength and weather resistance
- Multiple resistance options available with custom values upon request
Product Size
Application Area
The WX14-12 single coil wire wound potentiometer is primarily used for voltage or current adjustment. This wire-wound potentiometer features resistance wire wound on an insulated frame, with adjustable resistance via shaft rotation. Commonly used in audio equipment, power supplies, and other electronic devices for volume control and signal adjustment.
Manufacturer Information
We are a specialized factory with extensive experience in high-quality electronic component manufacturing:
- Advanced production equipment
- Professional R&D team
- OEM/ODM capabilities
- Strict quality control standards
Shipping & Support
We offer reliable global shipping solutions with comprehensive after-sales support:
- Express Mail Service
- DHL Express
- UPS
- FedEx
Frequently Asked Questions
-
Are you a factory or trading company?
We are a factory offering direct pricing with professional technical support. -
Could you provide samples?
Samples are available upon request after order placement. -
Can your product be customized?
We accept OEM/ODM orders with flexible requirements. -
What is your delivery time?
Delivery varies by quantity and model, with urgent requests accommodated when possible. -
Do you offer after-sales service?
We provide comprehensive 24-hour support for all products.
